DP CUP is three-dimensonal dish design.
The face around the pierce-hole, and the concave-dish dropped from center of the disk, will bring out the beauty of brushed-hairline.
The [BRUSHED] is a two-tone finish, with brushed-finish to disk, and buff-finish to rim.
Stuck in texture of aluminum-meterial.
Also we prepared distinctive 7 colors variations, including new colors adopted for the first time [MAT HYPER],[SMOKE CLEAR],[RED CLEAR].
The aluminum emblem, and the cap like center-lock, and the aluminum-valves, will produce the racing atmosphere.
The aluminum emblem is shipped with two colors, [SMOKE LOGO] and [RED LOGO] ,so that you can select according to your preferences.
You are on the cutting edge in custom, with this wheel[sized 16x5.5J/6.0J/6.5J].
Pursue the three-dimensional appearance & depth of the disk, we created a separate mold design.
| Type | 1 ピース構造 |
|---|---|
| Size | 16 inch |

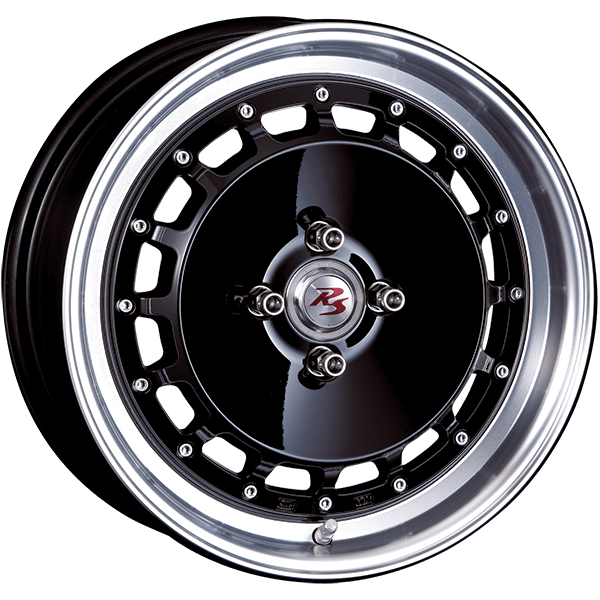

BLACK

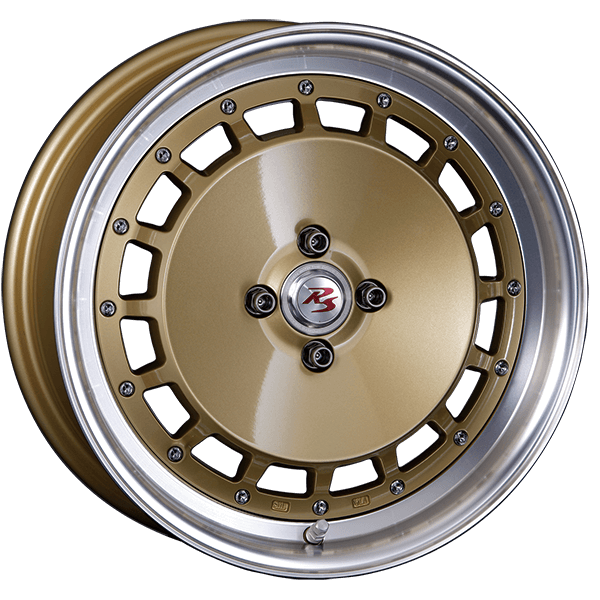

GOLD

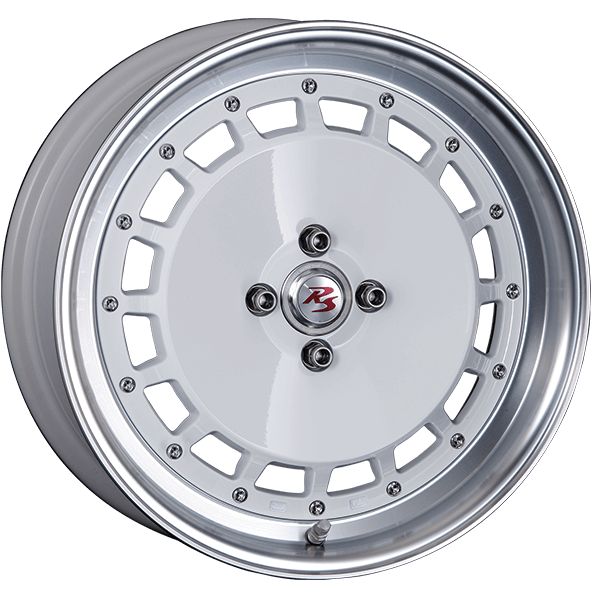

WHITE

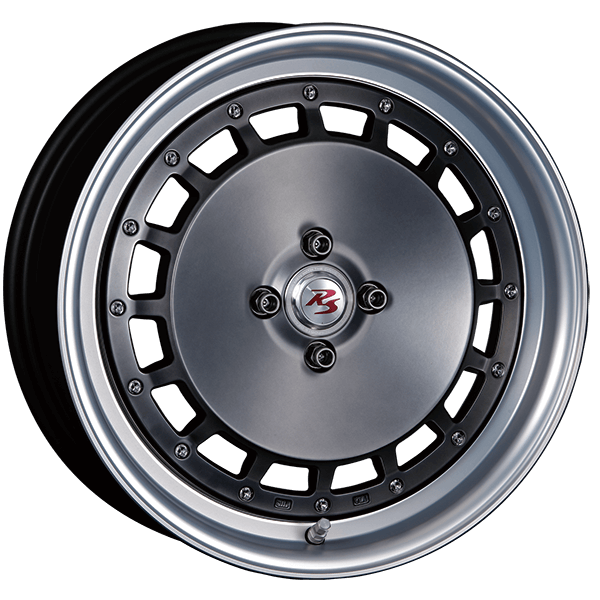

MAT HYPER

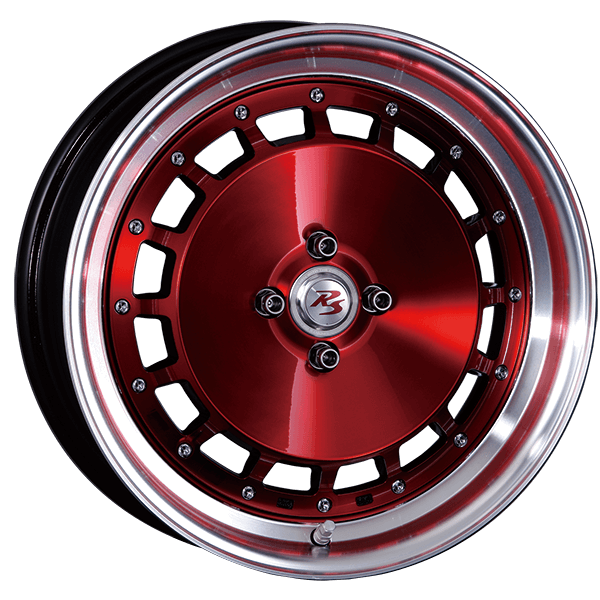

RED CLEAR

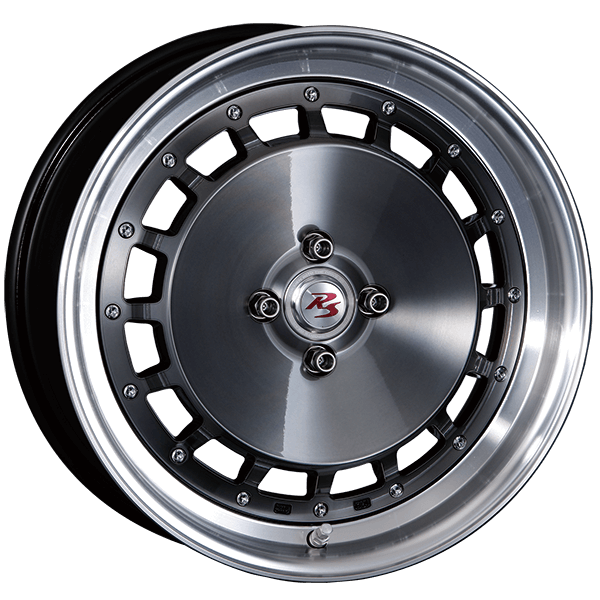

SMOKE CLEAR

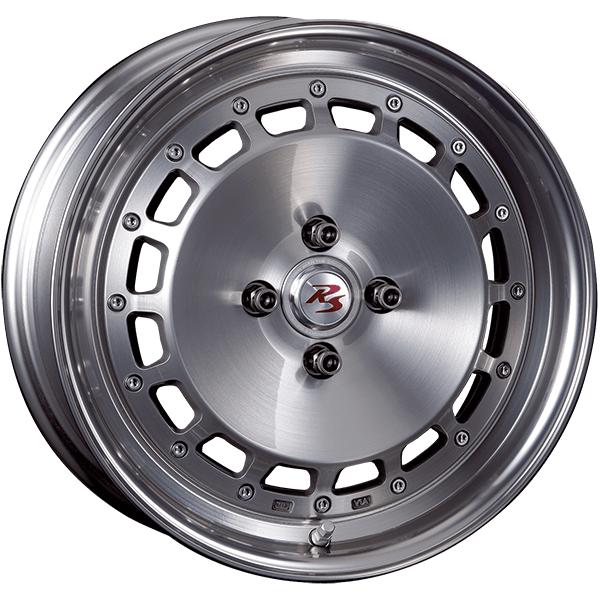

BRUSHED

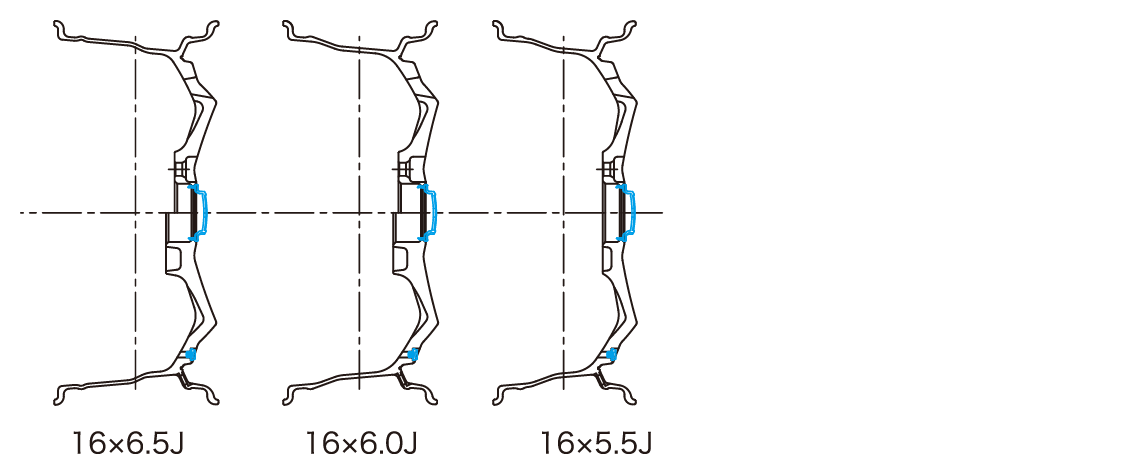

| Size | 税込価格(税抜価格) | Inset | H-P.C.D. | Hub Dia | bolt Dia |
|---|---|---|---|---|---|
| 16×5.5J | ¥48,400(¥44,000) | 45 | 4-100 | φ67 | φ15 |
| 16×6.0J | ¥49,500(¥45,000) | 45/39 | 4-100 | φ67 | φ15 |
| 16×6.5J | ¥50,600(¥46,000) | 45/38 | 4-100 | φ67 | φ15 |
| 35 | 4-98 | φ58 | φ13 |
Disk Color Variation
| COLOR | 税込価格(税抜価格) |
|---|---|
| BLACK | 上記価格 |
| GOLD | ¥8,800up(¥8,000up) |
| WHITE | |
| MAT HYPER | ¥14,300up(¥13,000up) |
| RED CLEAR | |
| SMOKE CLEAR | |
| BRUSHED | ¥13,200up(¥12,000up) |
ACCESSORIES
| Parts | Model number | 税込価格(税抜価格) |
|---|---|---|
| センターキャップ（サテンクローム） | RC-01SL | ¥2,200（¥2,000） |
| アルミストレートバルブ | CV-15 | ¥1,650（¥1,500） |
CENTER CAP / CENTER EMBLEM
-
センターキャップ（サテンクローム）
RC-01SL
¥2,200（¥2,000）
VALVE
-
アルミストレートバルブ
CV-15
¥1,650（¥1,500）
HUB LING
-
ハブリングΦ67×Φ58.1（FIAT、ALFA）
CHR-02
¥1,320（¥1,200）
-
ハブリングΦ67×Φ60.1（RENAULT）
CHR-03
¥1,100（¥1,000）
-
ハブリングΦ67×56（BMW、MINI）
CHR-07
¥1,100（¥1,000）
-
ハブリングφ67×φ57（VW、AUDI）
CHR-08
¥1,100（¥1,000）
NUT / BOLT
-
17HEX M12×1.5-28mm（5個入）
CBO-01
¥3,850（¥3,500）
-
17HEX M14×1.5-28mm（5個入）
CBO-11
¥3,850（¥3,500）
-
17HEX M14×1.5-35mm（5個入）
CBO-12
¥3,850（¥3,500）
